Getting Started with IntelliJ IDEA as an Eclipse User

Introduction: Why IntelliJ IDEA?

Coffee or Tea? Mac vs. PC? iPhone OS or Android? Eclipse or IntelliJ IDEA (or NetBeans)? Believe it or not, software developers argue as much about their IDE as any of these other hotly-debated topics. And for a good reason…


Confessions of an IntelliJ addict

IntelliJ IDEA as eclipse user Anton

My name is Anton, and I’m an IntelliJ IDEA addict. Whew, it feels good to say it out loud. The choice of IDE for developers is one of the most contentious debates in the software game. Unless you have a darn good reason, you don’t often use more than one IDE, let alone all three of the major IDEs in the Java world: Eclipse, IntelliJ IDEA and NetBeans.

The truth is that I have been a happy IntelliJ IDEA (for the sake of brevity and laziness, you’ll see IntelliJ IDEA referred to in full, as well as simply “IntelliJ” and “IDEA” as well from here on) user since 2004—a full decade. Over the last 10 years, I have always been discovering the new aspects of the IDE and I’m always waiting for the new version release with an excitement.

IntelliJ IDEA as eclipse user logo

But why? After all, aren’t all IDEs more or less the same? (BOOO! HISSSSS!) Was there something that happened in my past to make me so dedicated to this particular IDE?

Well, before settling on IDEA, I had worked with Eclipse and NetBeans, even championing Eclipse at one point in my former job. But by using IDEA and Eclipse almost side by side for some time I realized that IDEA supports the work I was doing much better. Eventually, I dodged other IDEs and decided to become a full-time IDEA user. When I joined ZeroTurnaround, my new role required me to learn all IDEs in-depth due to the fact that our flagship product, JRebel, ships as an IDE plugin for Eclipse, NetBeans, IDEA, and JDeveloper. My primary IDE is IntelliJ IDEA and my teammates think of me as of an IntelliJ IDEA addict.

Now it might be only my impression, but back then IDEA had the best refactoring capabilities. These days, I think it still is more consistent in terms of UX, and there are shortcuts for almost every action. Not to mention it understands the source code context better than others. Subjectively, it made me more productive, but this kind of depends on the set of features that you, as a developer, need and want. If the IDE matches what you actually use then it is probably the best IDE for you :)


The Java IDE market landscape

Here you can see a recent breakdown of the IDE landscape (as of 2012). We are planning to survey developers again in 2014 for new stats, but most likely, things haven’t changed that drastically. Note: Answers were non-exclusive and asked developers to select IDEs in use, not single selections only).

As you can see, I’m not alone. Close to 1/3 of Java developers that we surveyed in 2012 use IDEA on at least some projects. However, neither IDEA nor third-place NetBeans compare to Eclipse, which clearly dominates the scene. Understandably, Eclipse is an advanced tool that is completely free and open source (as is NetBeans), whereas you have to pay to get the most out of IDEA. Wait, what?

IntelliJ IDEA as eclipse user java IDE market landscape

Yep. What makes IDEA different is that was a commercial-only tool until 2009, when IntelliJ IDEA 9 was released. Now we have both Ultimate and Community editions. Community Edition is free and open source and Ultimate Edition is a commercial product and builds on top of Community Edition and offers more features and support.

A number of features are provided only in the commercial distribution and in this guide we assume that you will try Ultimate Edition when evaluating the IDE. The community edition is enough for Java and even for Android development, but you will miss a lot of cool features. See the full comparison of the two IDEA versions at the official product page: http://www.jetbrains.com/idea/features/editions_comparison_matrix.html


What you’ll see in this report

My main purpose in writing this report is to show Eclipse users, specifically, how to get started using IDEA faster and with less headaches.

Perhaps you are Eclipse users who are interested in trying out IntelliJ IDEA, or perhaps considering the migration. Moving from Eclipse to IDEA can be quite overwhelming. People usually neither have patience nor time to learn new IDE with its own set of shortcuts. Even more – in some cases it requires changing your mindset about how you use your IDE. With this guide, my goal is to point out the main differences when moving from Eclipse to IDEA so that the path wouldn’t be as painful.

I have seen a lot of my colleagues going from Eclipse to IntelliJ IDEA. They struggled initially, but survived. In a few days or weeks they didn’t want to come back to their previous IDE. Naturally, I have tried to help a lot of my friends to migrate to IDEA and with this guide I’d like to help YOU as well.

So, I’ve broken it down into a few chapters. In Chapter I, we’ll talk about getting your project set up right, Chapter II looks at keymap, navigation and editor settings, and Chapter III covers more advanced things like testing, deploying and artifacts. So, let’s get started!

Chapter I: Getting your first IntelliJ IDEA project set up
Chapter II: Getting comfortable with IDEA’s Keymap, Navigation and Settings
Chapter III: Getting productive with Tests, Deployments and Artifacts
Chapter IV: Summary, Conclusion and Goodbye Comic ;-)


Chapter I: Getting your first IntelliJ IDEA project set up

Let’s start the guide with getting your first project set up. You wouldn’t be able to give IDEA a try if you don’t have a project opened, right? Instead of creating a new project, you most likely will need to open—or import—an existing one.


Cloning and importing the project from a Git repository

Let’s clone a sample project from https://github.com/zeroturnaround/petclinic. This is a Petclinic web application based on the Spring framework.

1. VCS → Checkout from Version Control → Git

IntelliJ IDEA as eclipse user git menu
2. In the dialog, enter the repository URL and the destination folder. Click Clone to import the project.

IntelliJ IDEA as eclipse user git checkout
3. Once the project sources are cloned, the IDE will ask if you want to open the project because it discovered Maven’s pom.xml.nIn addition to Maven, IDEA also detects Gradle and Eclipse configuration files.

IntelliJ IDEA as eclipse user confirm import after checkout
If you had another project opened, the IDE will ask if you want to open it in a separate window.

IntelliJ IDEA as eclipse user confirm open in dedicated window
As an Eclipse user, you might be confused here—why would you need to open a project in another IDE window? This is not how the things work in Eclipse. With IntelliJ IDEA, you can have an IDE window per project. We will see more details about this a bit later in the Projects vs Modules part.

4. Voila! You’re done! As you have confirmed to open the project at the previous step, the project imports automagically and is ready to be hacked on. Keep in mind that after the project import, it will take some time for IDEA to index your project files. Later you’ll get this time back using smart code assistance.

Note: If you’re an Eclipse user, for now just assume that “Project” in IntelliJ IDEA is the same as “Workspace” in Eclipse, and “Module” in IntelliJ IDEA is the same as “Project” in Eclipse.


Project Structure and Configuration

Project structure and configuration in IntelliJ IDEA is very different from Eclipse. Almost everything—from project structure, folder management, how the packages are represented in the project tree, and this terminology issue with projects vs modules—looks really weird to an experienced Eclipse user. In this part, we will highlight the important aspects of the project structure and configuration.

Folders

Every project module can include a number of folders that can be handled differently.

When importing the project from a model (e.g. in the case of a Maven project) IDEA automatically discovers the source, test and resources folders. You can also set the folder type manually by selecting the appropriate option via the Mark Directory As context menu by right-clicking on the folder in project view.

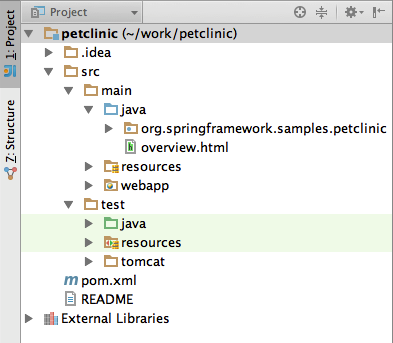

IntelliJ IDEA as eclipse user project tree
The project tool window can be accessed with Alt+1 / Cmd+1 shortcut. Here is a quick key for defining the meaning of folder labels:

  • Source – marks the folder as a source root

  • Test – marks the sources as tests

  • Excluded – If you mark a folder as ignored it won’t display in the project tree and its contents will not be indexed. Note that you might want to exclude a folder if there are a lot of big files, otherwise it can cause a bit of performance penalty for the indexer.

  • Resources – The new type of folders introduced in IDEA 13 – the resources folder. The contents of the resource folder are automatically copied to the compiler’s target folder.

Under External Libraries you will find all the dependencies for the module.

The project view can be adjusted according to your preferences. For instance, the way the packages are displayed, or if you would like to autoscroll to the source when selecting a resource in the project view, etc.

IntelliJ IDEA as eclipse user project adjustments

To get the detailed overview of all the modules, libraries and other settings related to the project, open the Project Structure dialog Ctrl+Shift+Alt+S / Cmd+;

IntelliJ IDEA as eclipse user project structure

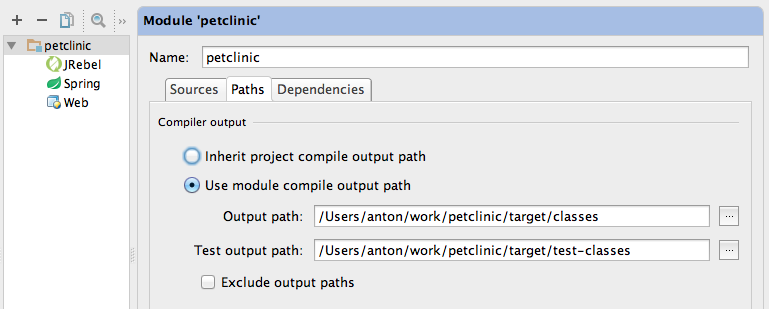

The modules view in the Project Structure dialog provides a full overview of the folder types in the selected module. Note that the Java language level can also be configured per module, i.e. one module could use Java 5 syntax, but you may want to set it to Java 7 for the other one.

IntelliJ IDEA as eclipse user module output paths

For defining the compilation target folder there are two options: either put every module’s compiled classes to the same location, or use a module-specific location, which can be overridden.

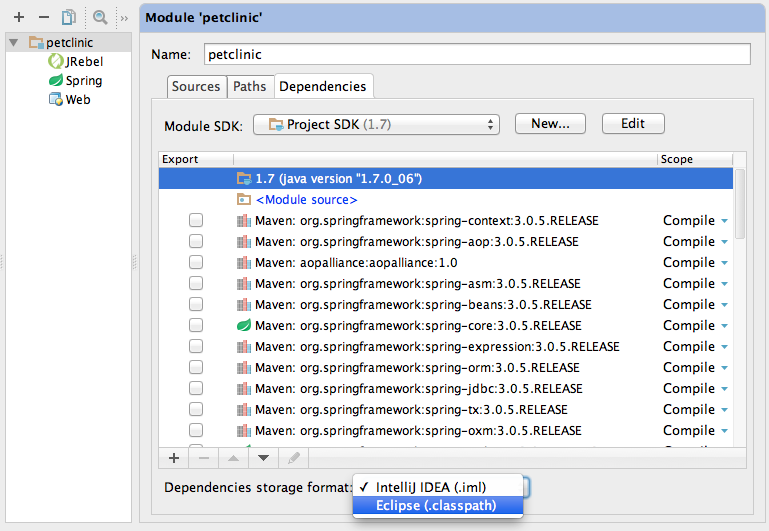

IntelliJ IDEA as eclipse user module dependencies

Dependencies can be specified in a variety of ways. For a Maven project, IDEA just automatically imports the dependencies specified in pom.xml and stores the list in an *.iml file in the root of the module. Alternatively, it is possible to tell IDEA to save the list in Eclipse-specific format.

The official IntelliJ IDEA documentation explains what are the specific configuration files for a project — http://www.jetbrains.com/idea/webhelp/project.html , and a module — http://www.jetbrains.com/idea/webhelp/module.html

Modules may have the references to other modules as well. It is similar to specifying the required project dependency in the Java Build Path in Eclipse.


Facets

Once the project is opened and after the initial scanning, IDEA will tell you that it has detected some artifacts and will suggest that you set some facets for the module, which are like little configuration assistants.

IntelliJ IDEA as eclipse user facets detected popup

By clicking the Configure link in the popup, it will bring out a dialog with the list of configurations IDEA suggests for you to configure (i.e. Hibernate, Spring, JPA, etc).

IntelliJ IDEA as eclipse user facet configuration dialog

Facets are used to streamline the project configuration in IDEA, and they encapsulate the support for a variety of frameworks, technologies and languages. For instance, a tool—let’s use JRebel as an example of shameless plug—can be set up to add its own facet to configure specific properties for a module. You can see below the JRebel facet there, just like you have for Spring. Now you can configure web-specific properties for the module.

IntelliJ IDEA as eclipse user facets

Interestingly, facets exist in Eclipse too, but for some reason this configuration method isn’t adopted very widely. In contrast to Eclipse, IDEA users depend on facets as a really common way of configuring modules.


Modules vs. Projects

Now, back to the Modules vs Projects dilemma. Before, I wrote that you should think of IDEA projects as of Eclipse workspaces. This analogy is good enough for the beginning, but it isn’t exactly correct, as projects in IDEA are not generally used in the same way as Eclipse workspaces.

In Eclipse, you would usually put a lot of different projects into the same workspace and then filter them with Working Sets or by closing the projects that aren’t relevant at the moment. That said, in Eclipse workspaces are rarely used for grouping arbitrary projects. Workspaces are used rather as a common root and the projects are added to or removed from the workspace. The average Eclipse user would have a limited number of workspaces in the file system.

In contrast, IDEA’s project is an umbrella for logically connected modules, whereas the modules are rather similar to Eclipse projects with the only difference that IDEA modules can be nested within the project tree.

A module is a part of the project that can be built independently.

Normally, you wouldn’t put the disconnected modules under the same project. Technically, you can, but that’s not idiomatic. You would rather open a new IDE window with the second project than importing another non-related module into the existing project.


Chapter II: Getting comfortable with IDEA’s Keymap, Navigation and Settings

Get ready to make a list! In this chapter, we go over in detail all the shortcuts you’ll need to effectively get started with IDEA, and highlight the major differences that might befuddle Eclipse users at first…also, we have a couple cheatsheets for you. Just click on each image below to enlarge and print!

IntelliJ IDEA as eclipse user cheat sheet part 1

IntelliJ IDEA as eclipse user cheat sheet part 2


The Keymap

Key bindings is something that gets welded into the backbone of developers—this is probably one of the hardest parts about migrating to one IDE from another. The most painful thing is when you hit a shortcut that performs a completely different (and often harmful) action than what you expect. If you are Eclipse user, try hitting Ctrl+D / Cmd+D in IntelliJ IDEA: you will realize the issue immediately!

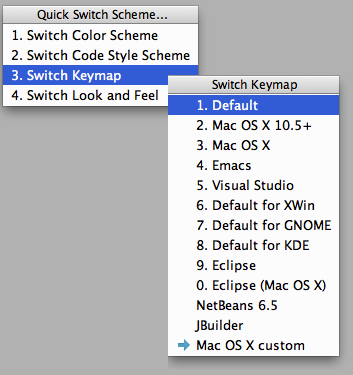

Of course, you can change the bindings of your keymap in IDEA. This is as simple as pressing Ctrl+` and selecting a preferred keymap. You can select between Eclipse, NetBeans, Emacs key bindings and some more.

IntelliJ IDEA as eclipse user keymap switch
Even though you can change the key bindings to the ones from the IDE that you’re familiar with, it doesn’t seem to be a good idea.

IntelliJ IDEA as eclipse user Erkki
“What I screwed up when trying IntelliJ IDEA is that I changed to Eclipse shortcuts and then I didn’t know what the key for Alt+Enter is.”
ERKKI LINDPERE – Typist

IntelliJ IDEA as eclipse user Oleg
“I went over keymap and assigned the most wired key-bindings from my Eclipse days. Especially if they didn’t collide with anything important.”
OLEG SHELAJEV – Software Developer



As we figured, the best strategy is to stick with the default key bindings and only change those handful of shortcuts that are really welded into your muscle memory and you can’t help yourself but hitting the wrong keys.

There are many shortcuts in IntelliJ IDEA, for navigation, editing, refactoring and more. In the following section, we’ll go over the most important key bindings that you most likely will need.

Before we proceed to the main part, let’s bring up the shortcuts that cause the most annoyance to ex-Eclipse users.


Ctrl+W / Cmd+W

One single shortcut that probably annoys Eclipse users the most is the block selection shortcut. Ctrl+W / Cmd+W is used to gradually expand the selection of code.

IntelliJ IDEA as eclipse user Adam
“I wish Ctrl+W did what I expect it to do :(“
ADAM KOBLENTZ – Senior Pre-Sales Engineer

IntelliJ IDEA as eclipse user Hadi
“We also are now trying to promote OSX 10.5+ keyboard binding on OSX to make OSX users feel more at home.”
HADI HARIRI – Software Developer



Yeah, indeed, Ctrl+W is usually used to close a tab or a window of an application. And IDEA decided to reserve this shortcut for something else: code selection.

But hey! The reason you want to use Ctrl+W / Cmd+W is actually irrelevant if you learn the zen of not closing the tabs — we’ll cover that in the Dealing with Tabs part later. If you develop a habit when you don’t have to close the tabs, you can then use Ctrl+W / Cmd+W for something else, i.e. for code selection.


Ctrl+D / Cmd+D

This is, arguably, the second most-annoying shortcut. In Eclipse, this shortcut is used for deleting the line. In IntelliJ IDEA, ‘D’ stands for ‘duplicate’. To delete a line, use Ctrl+Y / Cmd+Y instead.


Ctrl+S / Cmd+S

IntelliJ IDEA as eclipse user Oleg
“You should be aware of the auto-save feature and know what are you doing to enjoy it. For example, our small Play 1 application tries to reload everything when IDEA saves file (because it works on the source code level). In the same way I suspect any interpreted language behaviour somewhat cripples the usefulness of autosave.”
OLEG SHELAJEV – Software Developer

You do not have to save changes in IDEA: autosave works incredibly well. Just forget about saving the files as if it is a bad habit. Stop. Hitting. Ctrl+S.

IntelliJ IDEA as eclipse user Boromir meme


Navigation

The default look of IntelliJ IDEA is quite minimalistic. Starting from version 13 it doesn’t even include the toolbar in the default UI configuration.

IntelliJ IDEA as eclipse user default look

If you’re a new user and just starting to learn the IDE, you would probably want to switch on the toolbar as well as the tool window buttons. However, these control elements take up some space from the working area and as you learn the navigation shortcuts, you will most likely hide these elements after a while.

IntelliJ IDEA as eclipse user workbench with toolbar

Even more: the navigation bar with the launch buttons that is enabled by default could be hidden too and accessed later with shortcuts.

IntelliJ IDEA as eclipse user navigation bar

Navigation bar can be invoked via Alt + Home
Obviously, with all the tool controls closed you need to have access with shortcuts and that’s what makes navigation in IntelliJ IDEA quite pleasant.

Now let’s get our hands dirty. Assume that the our IDE workbench is in default setup and start discovering the navigation tricks.


Tool Windows

Tool windows provide an insight to all kinds of project aspects. For instance, there’s the Project view, Structure view, Maven Projects view, etc. So, tool windows are instrumental to the “I” in “IDE”​.

First, to quickly access these views, some of the tool window buttons have numbers and can be accessed with Alt+NUMBER / Cmd+NUMBER shortcuts. As project view is probably the most important one, then Alt+1 / Cmd+1 is a reasonable shortcut for this matter.

IntelliJ IDEA as eclipse user tool window buttons

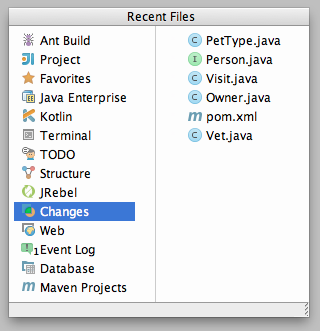

Recent Files popup, invoked via Ctrl+E / Cmd+E, is also handy for navigating between tool windows.

IntelliJ IDEA as eclipse user recent files
Also the Switcher popup, invoked with Ctrl+Tab, could be used for the same purpose. However, the mechanics of navigation are a bit quirky in Switcher, thus navigating via the Recent Files popup is more convenient.

Sometimes, I need to navigate from the file in editor to a tool window related to the current file. Alt+F1 opens a special popup that can be used to jump to any of the tool windows that are relevant. Probably the most common case is when you want to find out where the current file is located in the project structure. For that, Alt+F1 and hit Enter—and the currently open file will be highlighted in the project tree.

IntelliJ IDEA as eclipse user alt f1

The official documentation provides sophisticated information about the settings for the tool windows in IntelliJ IDEA http://www.jetbrains.com/idea/webhelp/intellij-idea-tool-windows.html


Basic Navigation

Navigation through the source code is one of the activities that we programmers execute on a regular basis. Let’s see what the navigation features are in IntelliJ IDEA.

Probably the most popular navigation feature is the ability to navigate to a particular class, invoked with Ctrl+N / Cmd+N.

IntelliJ IDEA as eclipse user open type
Similarly, the Navigate to File action is accessible with Ctrl+Shift+N / Cmd+Shift+N.

IntelliJ IDEA as eclipse user open file

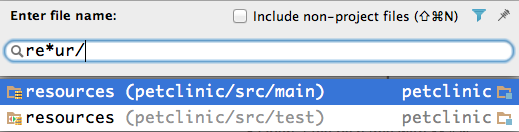

This action can actually be used to navigate to a folder in the project tree by adding a slash to the end of the search pattern.

IntelliJ IDEA as eclipse user shortcut definitions windows mac
Next, you can also Navigate to Symbol, Ctrl+Shift+Alt+N / Cmd+Shift+Alt+N, to navigate to a specific class, method or a field. I find this action to be a bit slow however, and therefore I don’t use it as often.

You might have noticed a pattern in the shortcut definitions by now:

IntelliJ IDEA as eclipse user navigate to folder
Protip: Note that for Mac there are two keymaps available: Mac OS X keymap, and Mac OS X 10.5+ keymap, which is more like the Eclipse keymap. So, you might want to switch to it.

Arguably, the most useful shortcut is the most accessible one, with via the Ctrl / Cmd key. Then, by adding the Shift key to the mix you access the second useful shortcut. And by adding more keys to the combination—Alt, in the case above—you proceed to the advanced actions.


Dealing with Editor Tabs

Before getting to more interesting navigation, it is a good idea to talk a look on the editor tabs behavior.

Let’s go to Settings → Editor → Editor Tabs.

IntelliJ IDEA as eclipse user editor tabs settings

My zen for the editor tabs is that there shouldn’t be more than one row of tabs in the editor view, but at the same time I do not want the tabs to start hiding once they don’t fit in one line. So I usually set the tab limit to a fairly small number, depending on the screen size, and leave the tabs dismissing policies to whatever is default.

By the way, the behavior of the tabs closing is somewhat different from Eclipse, so you might want to change that.

IntelliJ IDEA as eclipse user Oleg
“Default strategy for closing tabs in IDEA is peculiar at least. 10 open tabs with average Java class names, that are not arranged into a single row, take half of the screen on my laptop and annoy me enough to be the first thing I change after a fresh install. Other than that, settings are flexible enough to allow tweaking for any sensible taste.”
OLEG SHELAJEV – Software Developer

In general, navigation between editors rarely involves clicking on tabs. So I prefer a minimal in-your-face appearance: no package names, no ugly stars for unsaved files, no close buttons, single row, close unused tabs often, open most recent tab to preserve linearity of movements history.

More Navigation to Files

You may be confused by now about why you would restrict yourself on the number of tabs opened. In big projects, you might need to navigate through a lot of files and by closing the tabs would would have to find and open them again. So that seems inconvenient.

But have no fear! There is a better solution for navigation that I suggest you get familiar with…

IDEA has some actions that are very handy for navigation when you have to keep yourself in the context of many files. Ctrl+E / Cmd+E pops up the Recent Files list. The default number of files kept in the buffer is 50.

IntelliJ IDEA as eclipse user recent files filter
BTW, you can do a quick search in the Recent Files popup as well! Just start typing and the search will filter out the irrelevant entries.

IntelliJ IDEA as eclipse user recently edited files
If you know that you have edited the file recently, there’s a bit better option that you can use – Recently Edited Files, accessed with Ctrl+Shift+E / Cmd+Shift+E.

Arrows can be used for navigation between tabs, but also for navigating the cursor position history.

Ctrl+→ and Ctrl+← allows you to navigate between tabs as they are opened in the editor. That’s a pretty basic navigation feature. However, IDEA maintains the history of the cursor positions within the files as we have been browsing through the code. So it is possible to get back to the position in the code even if we don’t remember which exact file it was. Use Ctrl+Alt+→ and Ctrl+Alt+← for navigating over the cursor positions history.


Über Actions

Learning all the shortcuts at once can be quite overwhelming. You have to exercise them a lot to get comfortable with the new keymap and bindings. However, there are a few shortcuts that you absolutely have to remember!


Alt+Enter

Alt+Enter in IntelliJ IDEA is as universal as Ctrl+1 / Cmd+1 in Eclipse. If fixes things, but it can also suggest intentions “out of the blue”!

Whenever something is highlighted as a warning or error, use Alt+Enter and IDEA will help you out. But you can also hit Alt+Enter in almost any part of the code and a little popup will suggest actions that you can perform within the current context.

IntelliJ IDEA as eclipse user Oleg
“My recommendation, try hitting Alt+Enter more often.”
OLEG SHELAJEV – Software Developer

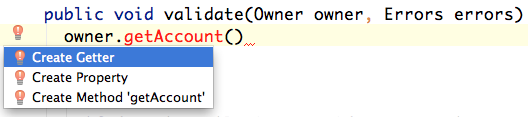

Another purpose of Alt+Enter is to invoke intentional actions. For instance, place the a cursor to a method modifier, hit Alt+Enter, and the popup will suggest you to convert the modifier from public to private, protected or make it package-local. Plugins can also contribute to intentions and add the specific actions to the context.

IntelliJ IDEA as eclipse user alt enter error
Read more about the intention actions in the official documentation: http://confluence.jetbrains.com/display/IntelliJIDEA/Intentions

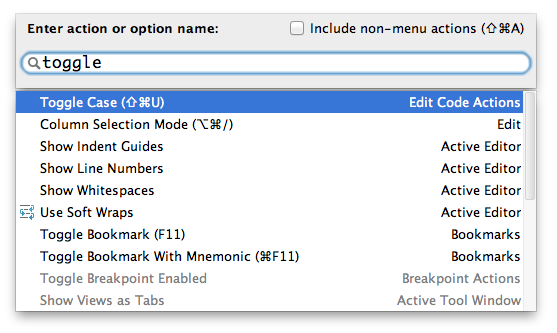

But what if you simply cannot remember all the shortcuts? Have no fear! You can find the actions by name as well as the settings, using the Ctrl+Shift+A / Cmd+Shift+A. This popup can be quite useful because you probably don’t have all the actions assigned with shortcuts.

IntelliJ IDEA as eclipse user search action


Search Everywhere

The newest addition to IntelliJ IDEA super-shortcuts is Search Everywhere. Double clicking the Shift button will invoke the relevant popup. Search Everywhere combines several shortcuts in one:

1. At the very start, it shows the list of recently opened files, same as Ctrl+E / Cmd+E.

2. Next, when you start typing, it starts displaying the results for classes, files, members, actions and IDE settings.

IntelliJ IDEA as eclipse user search everywhere

For you Eclipse users out there, Search Everywhere reminds me of Ctrl+3 / Cmd+3 in Eclipse, however it behaves a little bit differently.


Browsing the code

There are plenty of shortcuts for navigating over the source code in IntelliJ IDEA. There are shortcuts used for file navigation, but they are definitely not enough for a professional software developer.

Within the opened Java class, you can easily navigate to the specific method using the class outline popup, invoked via Ctrl+F12 / Cmd+F12.

IntelliJ IDEA as eclipse user class outline

To inspect the type hierarchy of the type/class that is under the cursor, hit Ctrl+H to open the type hierarchy tool window with the relevant class graph:

IntelliJ IDEA as eclipse user class hierarchy

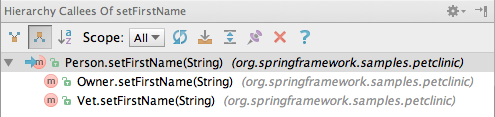

Ctrl+Alt+H does the same for the method call hierarchy.

IntelliJ IDEA as eclipse user method class hierarchy

IntelliJ IDEA as eclipse user Pavel
“Compared to Eclipse, I’m actually missing the ability to see the call hierarchy for the fields. In IntelliJ IDEA I can view the call hierarchy if I invoke the action on a getter to the field, but not if I try doing the same on a field itself.”
PAVEL GRIGORENKO – Research Engineer

So, let there be more shortcuts!

One of the most common ways to navigate the code is to follow the references. Ctrl+B / Cmd+B will probably be your beloved shortcut for this purpose; it’s same as F3 in Eclipse.

Finding the usages for a field, class, method or a local variable is another very common activity while browsing the source code. In IDEA, there are several shortcuts that are used for this task:

Use Alt+F7 to find all usages and display the results in a Find tool window.

IntelliJ IDEA as eclipse user find usages result

Ctrl+Alt+F7 / Cmd+Alt+F7 finds all usages and displays the results in a popup:

IntelliJ IDEA as eclipse user find usages popup

By using Ctrl+Shift+F7 / Cmd+Shift+F7 you will highlight the usages within the current file:

IntelliJ IDEA as eclipse user highlight usages

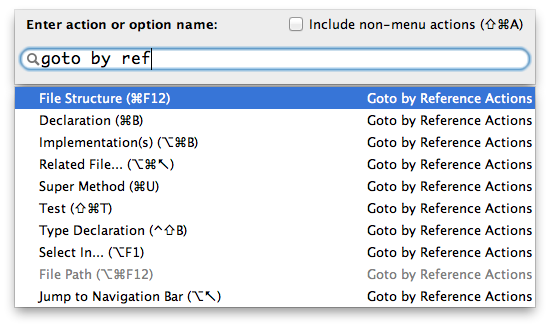

To learn about all possible reference navigation shortcuts, hit Ctrl+Shift+A / Cmd+Shift+A, and type “goto by ref” and you will see a whole list of navigation actions.

IntelliJ IDEA as eclipse user goto by reference actions
While typing into the search action popup, you will notice more navigation action types: Goto by Name Actions, which we covered previously, and Goto Error/Bookmark Actions, are for navigating to the warnings or errors in the currently opened file.

Often you don’t really want to navigate anywhere, but just quickly lookup the method definition, or maybe Javadoc?

Ctrl+Shift+I allows you to lookup the source code almost from any place in the IDE. Obviously, you can lookup the code from the editor:

IntelliJ IDEA as eclipse user quick lookup
But you can also lookup the code from the Navigation Bar or even from the Project tool window without opening the file.

IntelliJ IDEA as eclipse user quick lookup from project

It previews Javadoc for the code under the cursor, use Ctrl+Q / Ctrl+J.

IntelliJ IDEA as eclipse user javadoc


The Editor

The Editor is a central feature in IntelliJ IDEA. Ctrl+Shift+F12 /Cmd+Shift+F12 hides all the tool windows and leaves only the editor area in front of you. If you have closed all the toolbars, it will look very ascetic and clean:

IntelliJ IDEA as eclipse user editor

In addition, it is possible to detach the individual tabs of the editor which makes it convenient to use with multiple monitors.

IntelliJ IDEA as eclipse user detached editors


Settings

One of the things that most commonly surprises Eclipse users in IDEA’s editor is the fact that you can place the cursor caret after the end of the line. This is default behavior, but you can switch it off: Editor → Virtual Space → Allow placing caret after end of line. You’re welcome! ;)

Also, soft wraps are switched off by default, and it might be that you want to enabled these as well.

One of the interesting features that is also disabled by default is the use of “CamelHump” words ( Editor → Virtual Space → Use “CamelHump” words). CamelHump is a feature that identifies parts of compound names composed according to CamelCase, where each part starts with a capital letter. So you will be able to navigate by the CamelCase, instead of the whole word.

There’s a lot of different settings for the editor, so we won’t be listing all of them here. Just take your time to adjust the settings if you feel like doing so.


Auto-completion

I think that IDEA stands out with the number of auto-completions available. This is also something that you have to get used to after using Eclipse. With Eclipse, only Ctrl+Space is your main shortcut for auto-completion, but in IDEA there are multiple options for this.

As soon as you type something, IDEA will start to suggest the options for completion. This is instant completion.

IntelliJ IDEA as eclipse user as you type

Instant completion appeared in IDEA relatively late, since it had existed in Eclipse and NetBeans for some time before it was finally implemented in IntelliJ IDEA. I’ll be the first to admit that it seemed weird in the beginning, but now I wouldn’t go back. Instant completion is a must!

Basic completion is something that all Eclipse users already know using Ctrl+Space. But since instant completion appeared, I don’t remember using basic completion as often any more.

Basic completion can be used to suggest static methods. If you start typing the method name and invoke the basic completion twice, you get a list of the possible static methods that match the name. By hitting Alt+Enter, you can perform a static import for the selected method.

IntelliJ IDEA as eclipse user autocomplete static method

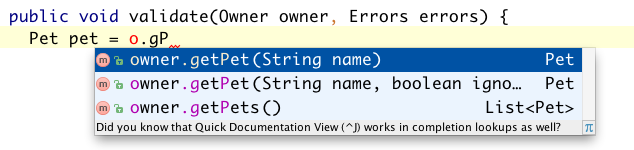

A very nifty feature of IntelliJ IDEA’s completion is the ability to find candidates for completing the incomplete symbols. One may start typing a name of the variable, put dot, and continue typing the member name – the IDE will provide corrected completion for both – variable and its member.

IntelliJ IDEA as eclipse user completion for symbols

IDEA also features type-aware completion, which is often referred to as smart completion. Ctrl+Shift+Space filters the suggestion list and shows only classes, variables, fields and methods of the type—you know, the stuff you might expect in this context.

IntelliJ IDEA as eclipse user type aware completion

IntelliJ IDEA as eclipse user Oleg
“It is actually confusing to have the separate shortcuts for completion. I tried assigning both the completions under the same shortcut, however, I’m not seeing the difference, but it seems to be doing what I need. Perhaps, this is just basic autocompletion which is good enough.”
OLEG SHELAJEV – Software Developer


Chained completion

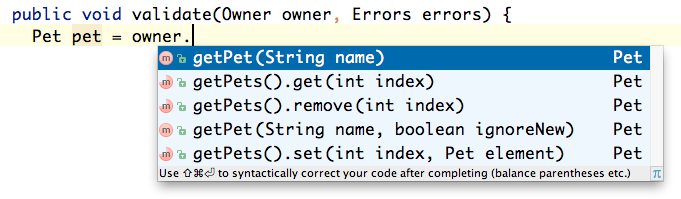

If you need to autocomplete a type that is obtained via a chain of calls, you can call the smart completion twice. To satisfy chained completion, IDEA will scan all the methods, fields and classes that are available from the context and provide the list of options according to the expected type.

IntelliJ IDEA as eclipse user chained completion


Protip for Mac OS X users

Mac OS X users will face a little challenge with the smart auto-completion shortcut. Namely, it appears that there is some bad interaction between the Chinese trackpad input method, and the default keyboard shortcut for smart auto-completion, which is Ctrl+Shift+Space.

OS X captures Ctrl+Shift+Space even when the Chinese trackpad input method is disabled. Here’s the way to mitigate this problem:

  1. System Preferences → Language & Text → Input Sources → Keyboard Shortcuts…

  2. Enable Chinese – Traditional. This will enable the button. If this isn’t enabled, the shortcut will not show up in the Keyboard pref pane, so you wouldn’t be able to edit it.

  3. Click the Keyboard Shortcuts… button

  4. At the Keyboard preferences pane, change the “Show Hide Trackpad Hand…” shortcut to something improbable.

  5. Go back to Language & Text and disable Chinese – Traditional.

Done! Ctrl+Shift+Space will now perform as it should!


Completing Statements & Blocks

Statement completion is often undervalued, but you might be really surprised how much time can it save! Ctrl+Shift+Enter / Cmd+Shift+Enter helps you complete the rest of that part of a statement. It automatically adds missing parentheses, brackets, braces and applies necessary formatting.

One complaint from the team was that statement completion should be invoked Ctrl+Enter / Cmd+Enter rather than incorporating Shift key into the combination. The argument is that statement completion is used more often than the split line action that occupies the Shift-less shortcut.

Above, we listed a number of completions available in IntelliJ IDEA. There are more! Depending on the context, you can make the autocompletes to work even more efficiently! Note that autocompletion works not only in the editor, but also in the other places of the IDE, i.e. in debugger views, and even in file dialogs.


Live Templates

Templates help you write code faster. Usually, your IDE will provide you a set of predefined templates, but you’re also allowed to add new templates.

Here’s an example: type psvm and then hit Tab: the public static void main(…) method will be generated.

IntelliJ IDEA as eclipse user psvm

Here’s another use case: check the method parameter for null equality. The corresponding if-statement can be generated with ifn template. So by typing “ifn” in the editor and pressing the Tab key the null-check-if-statement is generated.

IntelliJ IDEA as eclipse user ifn

Every template is associated with the context in which it can be applied. This is done so that the user doesn’t generate statements that do not belong to the context. For instance, psfs would not expand in the middle of a method, since it is only applicable to the declaration scope.

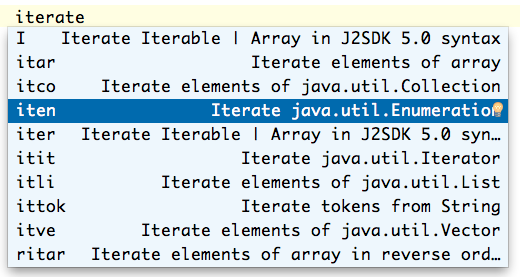

Ctrl+J will popup a list of all the templates. The list can be filtered based on the template name but also the by the description.

IntelliJ IDEA as eclipse user ctrl+j

Templates exist in Eclipse too. So, what’s different? The unique feature of the templates in IDEA is that the templates are backed with the available features from the IDE, e.g smart code completion and other useful functions. For more details, check out the official doc: http://www.jetbrains.com/idea/webhelp/edit-template-variables-dialog.html


Surround with Live Template

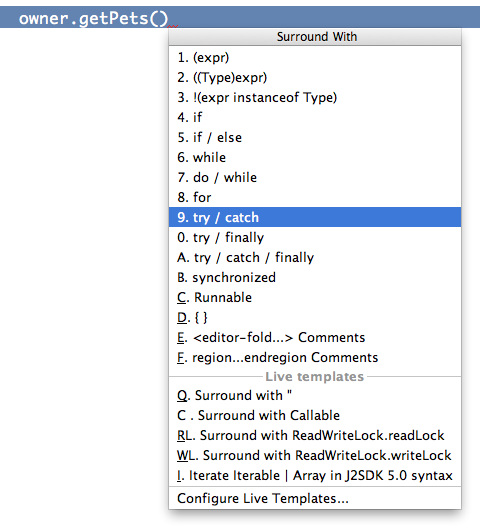

Templates can be used not only to generate code, but also for surrounding the existing statements. Ctrl+Alt+T / Cmd+Alt+T does the trick.

IntelliJ IDEA as eclipse user surround with
For instance, you can wrap the code with a try-catch block; this is probably the most common use case.


Generating Code

Alt+Insert / Ctrl+N will be one of your beloved shortcuts if you are used to generating constructors, setters and getters, toString() method, etc. The same shortcut is used to create new entities, i.e. files, in the project tool window.

IntelliJ IDEA as eclipse user generate


Code Formatting

To reformat the code, press Ctrl+Alt+L / Cmd+Alt+L and the appropriate dialog will appear. You can agree with the default options and choose not to show the dialog the next time.

IntelliJ IDEA as eclipse user reformat code

Code style is very important when working in teams. If your team members are using different IDEs, there might be some issues. Even if the team members try to adjust the settings as much as possible to match each other, still chances are high that something will be different in the way the different IDEs format code.


Importing Code Formatting Settings from Eclipse

IntelliJ IDEA is capable of importing code formatter settings from Eclipse without the use of any plugins. All you need to do is export settings from Eclipse: go to Eclipse’s Preferences → Java → Code Style→ Formatter and export the settings to an XML file via the Export All button. Then open IntelliJ IDEA Settings → Code Style → Java, click Manage, and import that XML file by simply clicking Import. Here is some more info on formatter capabilities: http://blog.jetbrains.com/idea/2014/01/intellij-idea-13-importing-code-formatter-settings-from-eclipse/.


Productivity Guide

That was a lot of information and a lot of shortcuts, but don’t fear: there’s even more!

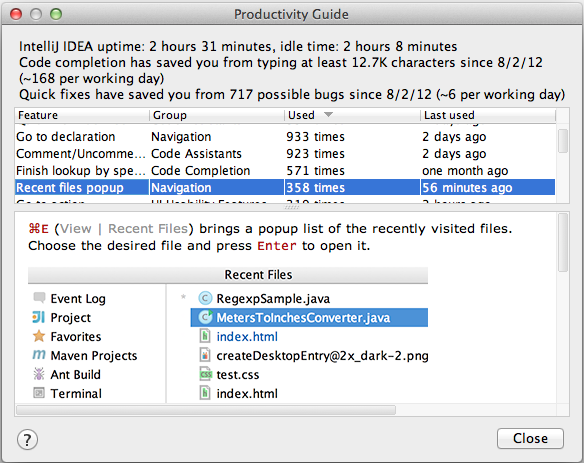

Would you like to know if you’re using IntelliJ IDEA effectively enough, and even get tips for being even more effective? Well, IDEA keeps track of your actions and collects the statistics that is turned into a nice report for your convenience.

IntelliJ IDEA as eclipse user productivity guide
Help → Productivity Guide
From the Productivity Guide report you can learn, which shortcuts you love and which you’ve never used before. Nice insight for improvement!


Compilation

Historically, IntelliJ IDEA did not compile code automatically after save operation. Instead, the user was supposed to press Ctrl+F9 / Cmd+F9 to run make process for the project. It does not mean that the whole project is rebuilt. The compilation is incremental: IntelliJ IDEA keeps track of dependencies between source files and recompiles only if a file has been changed.

Since IDEA v12, a function called off-process compilation mode was added. This can be enabled in Settings → Compiler → Make project automatically. With this, IDEA will save the file automatically, as well as compile it.

Note: The save operation delay is 1.5 seconds by default, and compilation delay is 0.3 seconds after the save operation is complete. These settings can be altered, but not a subject of this guide.

Here is the end of this chapter, but the next one goes into running tests, deployment to your application server and a bit about artifacts! Moving on…


Chapter III: Getting productive with Tests, Deployments and Artifacts

Now that we’ve covered project setup and a bazillion pages of keymap, navigation and editor tips/shortcuts, let’s see if you’re brave enough to get into testing and deployment ;-)


Running Unit Tests in IntelliJ IDEA

Executing unit tests in IDEA isn’t very different from how you would do it in Eclipse. Right-click on a module, from the context menu select Run ‘All Tests’. IntelliJ IDEA will execute all the tests that are located under the test folders.

IntelliJ IDEA as eclipse user run all tests
In the same way it is possible to select a single package, or a few test classes from different packages. This is especially handy when you would only like to run a limited set of tests locally.

IntelliJ IDEA as eclipse user running selected tests

For instance, in Petclinic project, one could select only VisitsAtomViewTest and OwnerTests classes in the project tree to execute the respective test set. Check out the run configuration that was created for the case when the tests were executed for the two test classes.

IntelliJ IDEA as eclipse user running tests configuration

The Test kind combo-box allows you to specify what kind of test execution we would like to define for the particular configuration. The ‘Pattern’ value for the type of test would allow to specify an expression to match the names of test classes for execution. No need to specify exact names of the classes—just write a regular expression.

IntelliJ IDEA as eclipse user running tests configuration regexp
Of course, there are all the other Test kind options available for running the tests for a particular package, test class, or just a single method in a test class.

Test results are observed in the Run tool window.

IntelliJ IDEA as eclipse user test results


Deployment to Application Server

Let’s now deploy the Petclinic app to a Tomcat container. First, we will need to configure the application server and then tell what do we actually want to deploy.

Run Configuration

IntelliJ IDEA has the concept of Run Configurations, just like with Eclipse. Before you can run an application, you need to create a run configuration for it.

Open the Run Configurations dialog via Run → Edit Configurations.

IntelliJ IDEA as eclipse user deployment

For every application server you can either create a Local configuration, or Remote. The Local configuration can be used if you intend to start the application server from the IDE. The Remote configuration type is good when the application server is started externally, either on the same machine or remotely.

Once a configuration is created, the dialog will notify you that the deployment artifact is missing; notice the Fix button in the bottom right.

IntelliJ IDEA as eclipse user deployment 2

By pressing the Fix button, IDEA will automatically derive what kind of artifacts are possible to create and deploy from the project structure.

IntelliJ IDEA as eclipse user deployment 3

Once the deployment is configured, you will see the Application Server view in the main IDE window. It lists the servers and the artifacts that should be deployed. Now you can just hit Shift+F10 to start the currently selected Run Configuration.

IntelliJ IDEA as eclipse user deployment 4


Artifacts

We have mentioned artifacts a lot, but haven’t explained what exactly they are. When you compile your module, the compilation results are placed into the module output folder. As a result, you get the ability to run, test and debug your application. However, as soon as you want something additional, you have to define an artifact.

An artifact may be as simple as your module compilation results packed in a .jar, and it may also include compilation results from more than one module (in different formats like .war, .ear, etc).

IntelliJ IDEA as eclipse user artifacts

For the “happy-path” scenario, as in our case with the Petclinic application, artifacts can be created semi-automatically; you just push the Fix button while creating the Run Configuration. This is because the sample application makes use of Maven and IDEA integrates well with that.

However, in case of more complicated scenarios, such as when the artifact structure doesn’t match the project structure, then you have the ability to define exactly what should be the final result of the make process.


Chapter IV: Summary, Conclusion and Goodbye Comic ;-)

Here is a nice TL;DR section for you lazy devs out there…complete with a comic that I made personally about how IDE users see other IDEs.

How do IDE users see each other?

IntelliJ IDEA as eclipse user how IDE users see each other

Source: http://twitpic.com/dseptp


Final thoughts

I’d like to think of this guide as a resource you can return to repeatedly, including our little shortcut cheat sheet, courtesy of Andrey Cheptsov from JetBrains. There is so much more I could have written into this report—after all, there are a lot more interesting features that we did not cover, such as support for databases and web technologies, specific capabilities for Spring & Java EE, and more…

It’s not an easy thing to switch IDEs, which is why I hope I covered all the most important aspects when migrating from Eclipse to IntelliJ IDEA. As a recap, here is what we covered:

Chapter I – Project structure and configuration, including folders, facets, and the terminology gap between IDEA and Eclipse regarding Modules and Projects.

Chapter II – This was the big boy of the report, covering keymap and key bindings, loads of navigation and editor settings, compilation, and a whole list of awesome shortcuts in a printable cheat sheet.

Chapter III – This is where we get truly practical with running
tests and deploying your app to your application server, along with artifact definition.

When it comes to something as personal as choice of IDE, it’s probably best to stick with what you know. But we developers are a curious type, and it’s always cool to learn about new methods, tools and technologies. IDEs are one of those tools that we use more or less constantly throughout the coding day, and even an incremental increase in productivity or feature availability has a big effect. This guide is also designed to increase your productivity by highlighting the biggest differences in features and shortcuts that Eclipse users will need to get used to in IntelliJ IDEA. Now, go forth and be awesome!


Download the PDF! ;-)

Responses (15)

  1. Avatar

    Jérôme

    February 13, 2014 @ 8:30 am

    Hi,

    This is fine, IDEA might be greater than Eclipse, it does not provide any RCP framework.
    This is one of the reason why people are still using Eclipse : it is not only a matter of developping applications but also to have an ecosystem you can build applications on.

    Regards,

  2. Avatar

    arhan

    February 13, 2014 @ 10:29 am

    The article takes a look at IntelliJ IDEA form the perspective of an IDE user. RCP is a whole other niche and Eclipse excels there that’s for sure. NetBeans is another RCP platform you might want to take a look at. IntelliJ IDEA – not an RCP for sure, but it is turning into a platform for building programming-oriented tools.

  3. Avatar

    Jérôme

    February 13, 2014 @ 12:28 pm

    Sure. I mean it is too bad. Because, while tempted to adopt IDEA for
    development because it is clearly superior, you often try to minimize
    the investment in learning tools and hence with RCP development you
    usually to stick to the IDE that offers RCP features as well.

  4. Avatar

    Johnny

    February 13, 2014 @ 5:00 pm

    Mr. ARHIPOV, if you are not sponsored by RUSSIAN company JetBrians, I’d say both Eclipse and Intellij are good IDE. To be honest I have been using IntelliJ and Eclipse for over 12 years. And now I use intellij mostly at work because I am forced to so. As IDE they are very close. For example Intellij’s search is better but eclipse’s debugger is better. Refactoring was shining feature for intellij but it isn’t much better than Eclipse any more.

    And also Intellij is basically an IDE. Do not compare Intellij with Eclipse’s frameworks.

  5. Avatar

    arhan

    February 13, 2014 @ 5:16 pm

    Hello!

    Haha :) No I’m not sponsored by JB. My sponsor is ZeroTurnaround :)

    I wonder what made you think that my article claims the superiority over Eclipse? Of course, for me IDEA is superior – but that is a subjective judgement and I’m not saying a word on IntelliJ vs Eclipse in this article.

    I know Eclipse pretty well and I know that there are features in debugger that Intellij lacks. There are features in IntelliJ debugger that Eclipse lacks too. So there’s no aim at comparing the IDEs in the article.

    Pointing out the tiny differences is a subject of flamewars in comments to the Reddit posts, not at RebelLabs, IMO.

  6. Avatar

    Apa

    February 20, 2014 @ 7:02 am

    This is religion taking over rational thinking. There’s no point in telling or showing Eclipse users that IntelliJ is superior in every field – which it is. They need to find that out by themselves the hard way.

    RCP sure but who cares? If your are tying frameworks to a specific IDE you are doing something seriously wrong. Investment in learning? Sure it takes a few days but considering that dont ever need to look back or elsewhere for next 10 years I’d say it offers a good payoff.

  7. Avatar

    Jatin

    July 30, 2014 @ 11:13 am

    Very well written. I am myself an Intellij fan and only go back to eclipse when I code in scala (sadly scala support is a bit better in eclipse).

    There were many useful shortcuts that I was not aware of. Thanks for them :)

  8. Avatar

    Yona Appletree

    October 2, 2014 @ 6:42 pm

    Interesting that you find Eclipse’s Scala support better. I’m a Scala developer by day and my entire team uses IntelliJ. We actually switched from Eclipse because IntelliJ seemed to handle Scala better. Specifically, it had better syntax highlighting, error reporting, refactoring and integration with Maven in Java/Scala projects.

  9. Avatar

    Jatin

    October 5, 2014 @ 4:01 pm

    Hmm I have heard this from another person also recently. There are few things where I think eclipse excels better: showing exact implicit function when an implicit transformation happens (afaik intellij doesnt show this), better worksheet, syntax highlighting (personal choice :))

  10. Avatar

    elf

    November 21, 2014 @ 11:12 am

    Then i come to idea. I miss very comfort eclipse typing model, when u finish method eclipse place cursor after closing brackets and I type Semicolon and Enter.
    Eclipse preserve ability to change parameters list.
    Idea place cursor in brackets, thats break me down. I need to pess End or Right arror, they very far for me. I hate this.
    Is this configurable?

  11. Avatar

    arhan

    November 21, 2014 @ 11:30 am

    Isn’t ; disabled in Eclipse by default so that you have to explicitly enable that?
    In IDEA, to complete statement they have a shortcut: Ctrl+Shift+Enter / Cmd+Shift+Enter.
    It is a matter of taste, which one is better, typing, or pressing a shortcut. For me, the shortcut semantics (pressing the specific shortcut) is better since I clearly indicate the intent.
    Typing a character inside brackets and pressing enter and then expecting the statement to close is sort of an implicit semantics and looks rather like a hack.

  12. Avatar

    elf

    November 21, 2014 @ 11:45 am

    My mistake. By Enter i mean new line. Before it need press Enter to complete statement, and now Semicolon and Enter.

    Thanks, i will try shortcut.

  13. Avatar

    James

    May 10, 2015 @ 1:29 am

    On a mid to mid-low configured machine, the latest version of Idea (14) feels a lot more sluggish than Eclipse (luna). The UI lags (menus, indexing, autocomplete). Eclipse feels like a native Win32 application built for speed, second only to Visual Studio, which is truly a performance gem, a piece of engineering marvel. Idea is slower than Eclipse (currently), and laughably slower than Visual Studio.

    I can appreciate many of Idea’s clever refactoring features, but being a capable Java developer without ADHD and as someone who plans fairly well before coding, and can think of outstandingly fitting names of classes, methods and variables, and can design perfect method signatures all the time, I don’t need them. Mostly never.

    But the sluggishness of the UI (while editing more so) is a nightmare to put up with, especially when compared to editing in Visual Studio, Vim, Eclipse, Sublime etc. I don’t understand why it stalls when opening a 10,000 line file while Visual Studio / Eclipse does not. It also comes to a grinding halt when opening, say, 50 files each with 20,000 lines. It starts to crawl.

  14. Avatar

    Pablo Sánchez

    July 23, 2015 @ 2:52 am

    All I wanted was a few things… and I did. Hightly customizable. Check my settings here:

    https://github.com/phackwer/MidnightDevilIntelliJ

  15. Avatar

    Eduard

    January 5, 2016 @ 6:13 am

    What’s up with the next page links? They redirect to the start page.

RSS feed for comments on this post.

Sorry, the comment form is closed at this time.
